| General | |
|---|---|
| Input Voltage | 90Vac~264Vac |
| Wattage | 400W |
| Form Factor | 1U |
| MTBF(hrs) | 100,000 @25°C |
| Temperature/Humidity | Operating: -10°C ~ 50°C, 85%RH Storage: -40°C ~ 80°C, 95%RH |
| EMC & Safety | CE, FCC, UL, CSA, TUV, CCC |
| Dimension (WxHxD) | 100 x 40.5 x 190 (mm) |
| DC Output | ||||||
|---|---|---|---|---|---|---|
| +5V | +3.3V | +12 V1 | +12 V2 | -12V | +5Vsb | |
| Max. Load | 16A | 14A | 0.1A | 33A | 0.3A | 3A |
| 85W Max | ||||||
| Min. Load | 0A | 0A | 0A | 0.05A | 0A | 0A |
| Ripple | 50mv | 50mv | 100mv | 120mv | 120mv | 50mv |
| Category | Product | P/N | Status | Description |
|---|---|---|---|---|

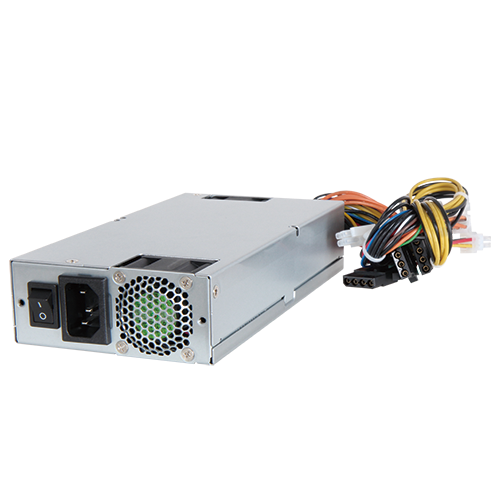

| System | APA-3083 | APA-3083 | Available | 400W 1U ATX Power Supply |
