| General | |
|---|---|
| Input Voltage | 19VDC~32VDC |
| Wattage | 300W |
| Form Factor | PS/2 |
| MTBF(hrs) | 100,000 @25°C |
| Temperature/Humidity | Operating: 0°C ~ 50°C, 5% ~ 95%RH Storage: -40°C ~ 75°C, 5% ~ 95%RH |
| EMC & Safety | CE, FCC, UL, TUV |
| Dimension (WxHxD) | 150 x 86 x 140 (mm) |
| DC Output | ||||||
|---|---|---|---|---|---|---|
| +5V | +3.3V | +12 V1 | -5V | -12V | +5Vsb | |
| Max. Load | 30A | 15A | 15A | 2A | 2A | 1.2A |
| 150W Max | ||||||
| Min. Load | 2A | 0A | 0.1A | 0A | 0A | 0A |
| Ripple | 50mv | 50mv | 100mv | 100mv | 100mv | 100mv |
| Category | Product | P/N | Status | Description |
|---|---|---|---|---|

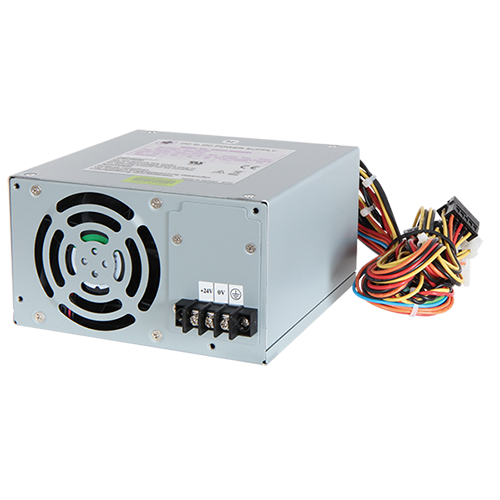

| System | APD-2022 | APD-2022 | Available | 300W 24V DC input PS/2 ATX Power Supply |
