| SPECIFICATION | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Input Voltage | 100 Vac~240 Vac | ||||||||
| Wattage | 500w | ||||||||
| Form Factor | PS/2 | ||||||||
| MTBF(hrs) | 700,000 @25Ā°C | ||||||||
| Temperature/ Humidity | Operating: 0Ā°C ~ 50Ā°C, 8Ā°C ~ 90Ā°RH | ||||||||
| Storage: -20Ā°C ~ 85Ā°C, 5Ā°C ~ 90Ā°RH | |||||||||
| EMC & Safety | CE, FCC, CCC, CB, BSMI, UL, TUV, KC | ||||||||
| Dimension(WxHxD) | 150 x 86 x 140 (mm) | ||||||||
| DC OUTPUT | |||||
|---|---|---|---|---|---|
| +5V | +3.3V | +12 V | -12 V | +5Vsb | |
| Max. Load | 20A | 20A | 41.7A | 0.3A | 3A |
| 120W | 500W | 3.6W | 15W | ||
| Min. Load | 0A | 0A | 1A | 0A | 0A |
| Ripple | 50mv | 50mv | 120mv | 120mv | 50mv |
| Category | Product | P/N | Description |
|---|---|---|---|

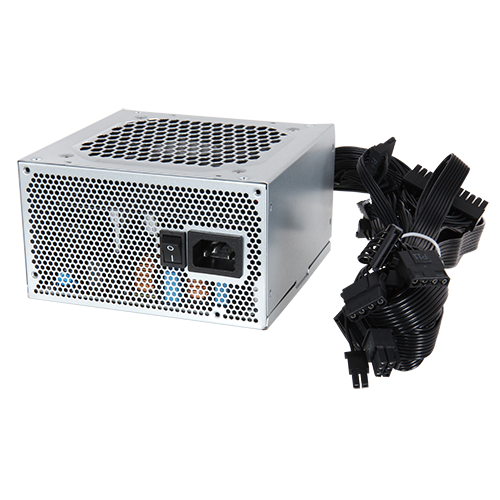

| System | APD-3092 | APD-3092 | 500W PS/2 ATX Power Supply |
