| General | |
|---|---|
| Input Voltage | 90Vac~264Vac |
| Wattage | 300W |
| Form Factor | Flex ATX |
| MTBF(hrs) | 100,000 @25°C |
| Temperature/Humidity | Operating: 0°C ~ 50°C, 85%RH Storage: -40°C ~ 85°C, 95%RH |
| EMC & Safety | CE, FCC, TUV, CB, CCC, BSMI, RCM, UL |
| Dimension (WxHxD) | 81.5 x 40.5 x 150 (mm) |
| DC Output | ||||||
|---|---|---|---|---|---|---|
| +5V | +3.3V | +12 V1 | +12 V2 | -12V | +5Vsb | |
| Max. Load | 17A | 14A | 18A | 18A | 0.8A | 2A |
| 110W Max | 252W Max | |||||
| Min. Load | 0.2A | 0.1A | 0.1A | 0.5A | 0A | 0A |
| Ripple | 50mv | 50mv | 120mv | 120mv | 120mv | 50mv |
| Category | Product | P/N | Status | Description |
|---|---|---|---|---|

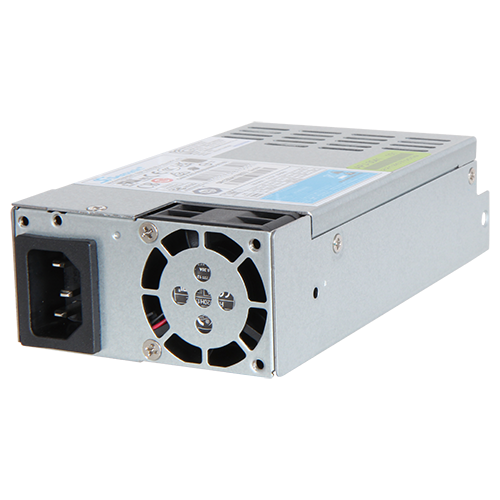

| System | APJ-3041 | APJ-3041 | Available | 300W Flex ATX Power Supply |
