Computer on Module

/

PCOM-B65C

PCOM-B65C

COM Express Type6 Compact size module with AMD Ryzen Embedded 8000 Processor DDR5 SO-DIMM, DDI, PCIe Gen 4, USB 3.2 Gen2, discrete TPM 2.0, eDP, SATA, Out-of-Band(OOB)

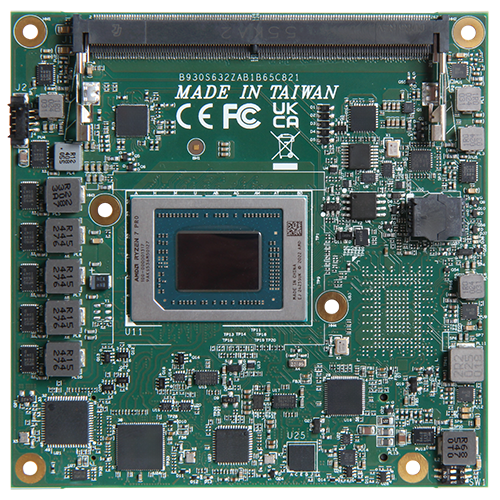

PCOM-B65C

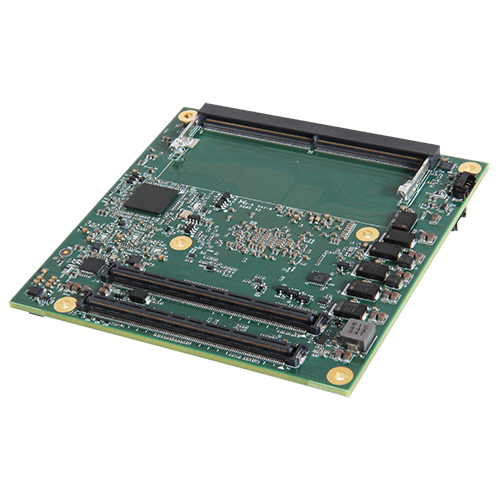

PCOM-B65C - Image 2

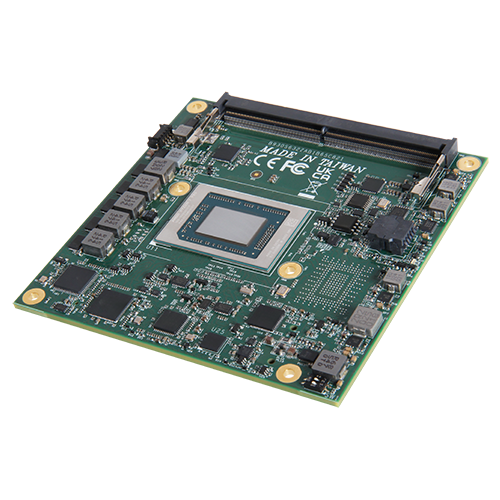

PCOM-B65C - Image 3

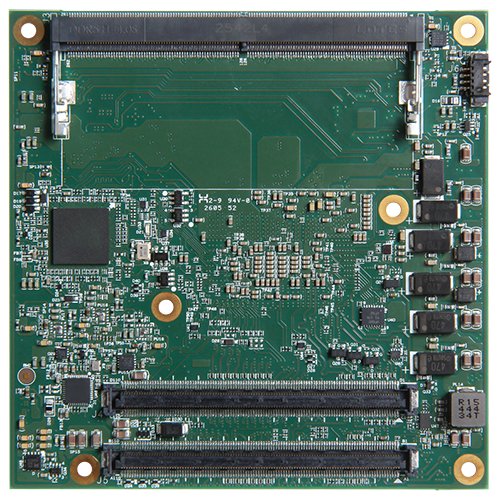

PCOM-B65C - Image 4

PCOM-B65C - Image 5

Features

AMD Ryzen Embedded 8000 Series
Up to 8 Zen 4 Core, and RDNA 3 up to 6 workgroups
2x DDR5-5600 non-ECC SO-DIMMs up to 96GB, 1x Gen4 x8, 1x Gen4 x2, and 6x Gen4x1
4x USB3.2 Gen2, 2x SATA, 3x DDI, VGA, eDP/LVDS
Supports Out-of-Band (OOB) and optional for onboard PCIe NVMe SSD

Model	PCOM-B65C
Form Factor	COM Express Type 6 Compact Size (95 mm x 95 mm)

General
CPU	8845HS	8840U	8645HS	8640U
Core/Thread	8C/16T	8C/16T	6C/12T	6C/12T
Based Frequency	3.8	3.3	4.3	3.5
Turbo Frequency	5.1	5.1	18 MB	4.9
Cache	8	8	6	7
TDP	45	28	45	28
Graphics EU	8 WGPs	8 WGPs	4 WGPs	4 WGPs
Graphics Max Freq.	2.7	2.7	2.6	2.6
Memory Type/Speed	2x DDR5 SO-DIMM up to 96GB 5600MT/s	2x DDR5 SO-DIMM up to 96GB 5600MT/s	2x DDR5 SO-DIMM up to 96GB 5600MT/s	2x DDR5 SO-DIMM up to 96GB 5600MT/s
ECC Memory Support	Support	Support	Support	Support
Temperature Range	0 ~ 60 °C (32.0 ~ 140.0 °F)	0 ~ 60 °C (32.0 ~ 140.0 °F)	0 ~ 60 °C (32.0 ~ 140.0 °F)	0 ~ 60 °C (32.0 ~ 140.0 °F)
BIOS	AMI uEFI BIOS
ECC	board
Memory	2 x SO-DIMM DDR5 up to 96GB 5600 MT/s

I/O Interface
SATA	2 x SATA III (Default)
USB	8 x USB 2.0 (Default)
USB	4 x USB 3.2 Gen2 x2 (Default)
Ethernet	1 x 2.5 Gbe LAN (Default)
PCIe	1 x PCIe Gen4 x8 (Default)
	1 x PCIe Gen4 x2 (Default)
	6 x PCIe Gen4 x1 (Default)
Storage	1 x support NVMe (Share w/ SATA)
Legacy I/O	8 x GPIO (Default)
	1 x I2C (Default)
	1 x SMBus (Default)
	2 x UART (Default)
Security	TPM 2.0
Display	eDP / LVDS eDP up to HBR3 3840 x 2160@120Hz (Default)
	eDP / LVDS LVDS (24bit, dual channel) 1920 x 1200@60Hz (Option)
	DDI 1/2/3 eDP up to HBR3 3840 x 2160@120Hz (Default)
	DDI 1/2/3 HDMI^® 2.1 (Default)
	VGA VGA 1920 x 1200@60Hz (Share w/ DDI)

ME/Environment
Dimension	95 mm x 95 mm (3.74” x 3.74”)
Operating Temperature	0 ~ 60 °C (32.0 ~ 140.0 °F)
Storage Temperature	-40 ~ 85 °C (-40.0 ~ 185.0 °F)
Certification	CE/FCC Class A
OS	Windows 11, Ubuntu 24.04
Portwell Special Feature	PET, RPET

Ordering Guide

Category	Product	P/N	Description
COM Express	PCOM-B65C-8845HS	TBD	Type 6 Module
COM Express	PCOM-B65C-8840U	TBD	Type 6 Module
COM Express	PCOM-B65C-8645HS	TBD	Type 6 Module
COM Express	PCOM-B65C-8640U	TBD	Type 6 Module
