Intel^®Core™ Ultra Processors; 2x DDR5 Long-DIMM up to 96GB; PCIe x16, PCIe x8, 2x PCIe x4, 1x M.2 key M; dual LAN, 6x COM, 4x USB 3.2, 4x SATA III

RUBY-D722G2A

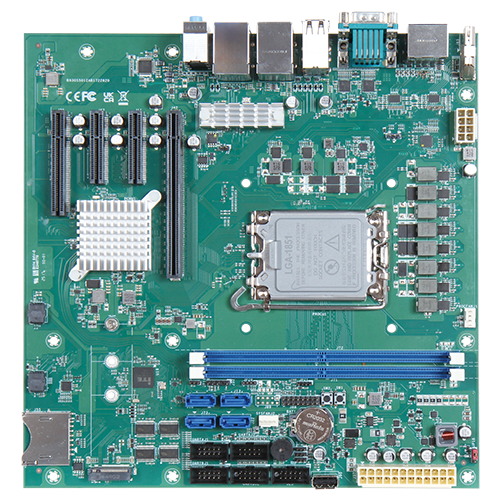

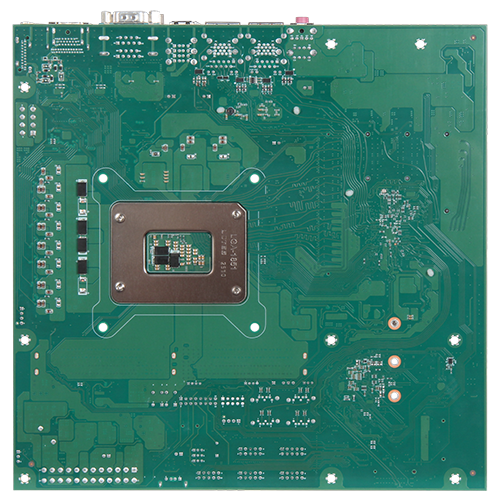

RUBY-D722G2A - Image 2

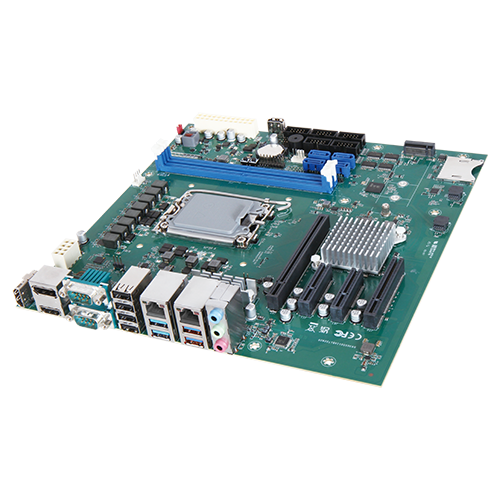

RUBY-D722G2A - Image 3

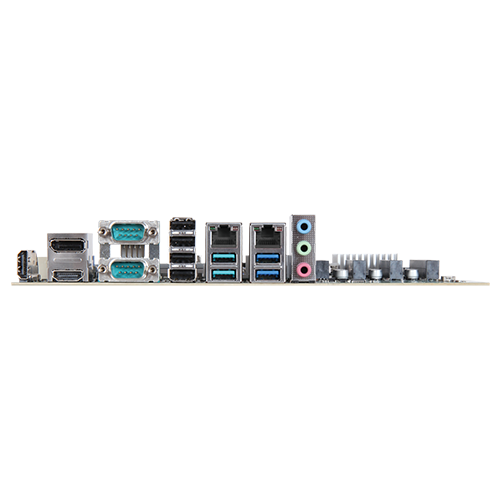

RUBY-D722G2A - Image 4

Features

Intel^®Core™ Ultra Processors (Series 2)
Supports Intel^®800 Series Chipset
Two Long-DIMM support DDR5 Non-ECC DRAM up to 96GB
Support dual Ethernet (one supports OOB function), 6x COM ports, 4x USB 3.2 ports, 4x SATA III ports and Audio
One PCIe x16, one PCIe x8 (PCIe x4signal), 2x PCIe x4 (PCIe x1 signal). One M.2 (Type M), type 2242/2260/2280

Model	RUBY-D722G2A
Form Factor	Micro-ATX

General
Processor	Intel^®Core™ Ultra Processors (Series 2), LGA 1851 socket, 65W TDP
Processor	Intel^®Core™ Ultra Processors (Series 2), LGA 1851 socket, 125W TDP
Chipset	Intel^®H810
BIOS	AMI uEFI BIOS
Memory	Support up to 96GB DDR5 6400 MT/s on 2 non-ECC UDIMM
Storage	4 x SATA Ports Support RAID 0, 1, 5, 10
Storage	1 x SD
Watchdog Timer	Programmable, time out period from 1 s to 255 s
Graphic Controller	Intel^®Xe LPG Graphics

Rear I/O
Audio	1 x Audio Jack Line-in , Line-out , Mic-in w/ Realtek ALC897
Ethernet	1 x Intel^®I210AT with GbE LAN 10/100/1000 Mbps (Support OOB W/ OS Recovery, BIOS recovery, Power On/Off, Reset, SOL)
Ethernet	1 x Intel^®I219LM with GbE LAN 10/100/1000 Mbps
Serial Port	2 x COM Ports Support RS-232/422/485
USB	2 x USB 3.2 Gen2 Type A on Bracket
	2 x USB 3.2 Gen1 Type A on Bracket
	4 x USB 2.0 Type A on Bracket
Display	2 x HDMI^® 2.0 3840 x 2160@60Hz
Display	1 x DP 1.4 3840 x 2160@60Hz

Expansion I/O
PCIe	1 x PCIe Gen5 x16
	1 x PCIe Gen4 x8 ( x 4 signal ) Open Slot
	2 x PCIe Gen4 x4 ( x 1 signal ) Open Slot
Serial Port	4 x Pin Header support RS-232
USB	1 x USB 2.0 Vertical Type A
M.2	1 x M.2 M Key 2242 2260 2280 support SATA, PCIe x1
Security	TPM 2.0 ( On Board IC )
GPIO	1 x 8-bit Digital I/Os
Others	1 x SMBus

ME/Environment
Dimension	244 x 244 mm (9.61″ x 9.61″)
Power Supply	AT mode/ ATX mode
Operating Temperature	0 ~ 60 °C (32.0 ~ 140.0 °F)
Storage Temperature	-40 ~ 85 °C (-40.0 ~ 185.0 °F)
Relative Humidity	5% to 95%, non-condensing
Certification	CE/FCC
OS	Windows 10 IoT Enterprise 2021 LTSC, Windows 11 IoT Enterprise 2024 LTSC, Ubuntu 24.04, RedHat Enterprise
Portwell Special Feature	PET, OOB API

Ordering Guide

Category	Product	P/N	Description
Micro-ATX	RUBY-D722-125W	AB1-3T78	(R).RUBY-D722G2A-125W. Micro-ATX.IMB.LGA1851.H810 PCH.DDR5/DP/Dual HDMI^®/Dual GbE/COM/Audio/USB-125W
Micro-ATX	RUBY-D722-65W	AB1-3U98	(R).RUBY-D722G2A-65W. Micro-ATX.IMB.LGA1851.H810 PCH.DDR5/DP/Dual HDMI^®/Dual GbE/COM/Audio/USB-65W
