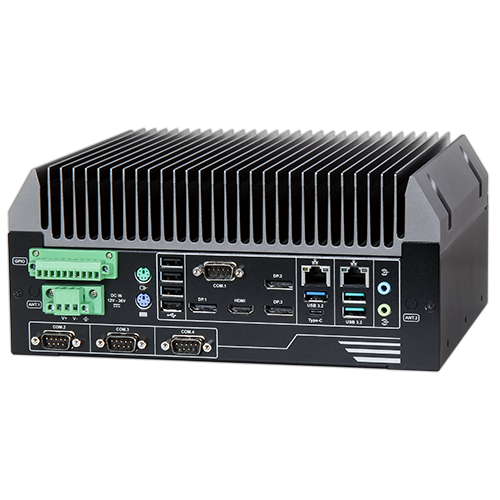

| Model | WEBS-45J1-BTL |
|---|---|
| Sys Form Factor | Proprietary |
| General | ||||||
|---|---|---|---|---|---|---|
| Processor | Intel® Core™ 7 251TE | Intel® Core™ 5 221TE | Intel® Core™ 5 211TE | Intel® Core™ 3 201TE | ||
| Chipset | Intel® Q670E | |||||
| BIOS | AMI uEFI BIOS | |||||
| Memory | Support up to 96GB DDR5 4800 MT/s on 2 SODIMM | |||||
| Storage | 2 x 2.5″ SSD/HDD SATA | |||||
| 1 x M.2 Key-M SATA / NVMe PCIe x4 2242/2260/2280 | ||||||
| AI Accelerator | Hailo Hailo-8 (M.2 Key M) | |||||
| Watchdog Timer | Programmable, time out period from 1 s to 255 s | |||||
| Graphic Controller | Intel® UHD Graphics | |||||

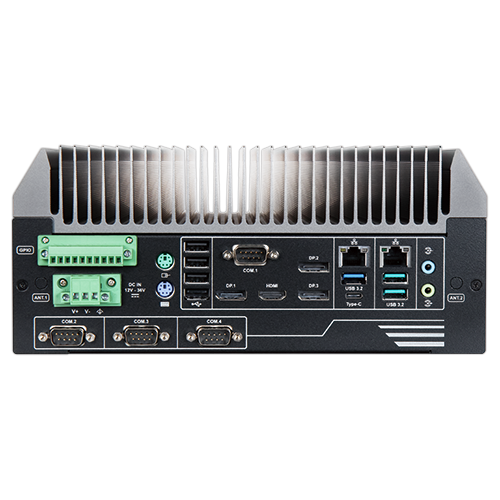

| System I/O | ||||||
|---|---|---|---|---|---|---|
| Audio | 1 x Audio Jack Line-in , Line-out w/ Realtek ALC897 | |||||
| Ethernet | 1 x 1 GbE LAN w/ Intel® WGI210AT | |||||
| 1 x 2.5 GbE LAN w/ Intel® WGI225LM | ||||||
| Serial Port | 2 x COM Ports Support RS-232/422/485 | |||||
| 2 x COM Ports Support RS-232 | ||||||
| USB | 2 x USB 3.2 Gen2 x1 (10Gbps) Type A | |||||
| 1 x USB 3.2 Gen2 x1 (10Gbps) Type C | ||||||
| 1 x USB 3.2 Gen1 x1 (5Gbps) Type A | ||||||
| 4 x USB 2.0 (480Mbps) Type A | ||||||
| PS/2 | 1 x PS/2 KB & MS | |||||
| GPIO | 1 x 8-bit Digital I/Os | |||||
| Display | 3 x DP | |||||
| 1 x HDMI® | ||||||

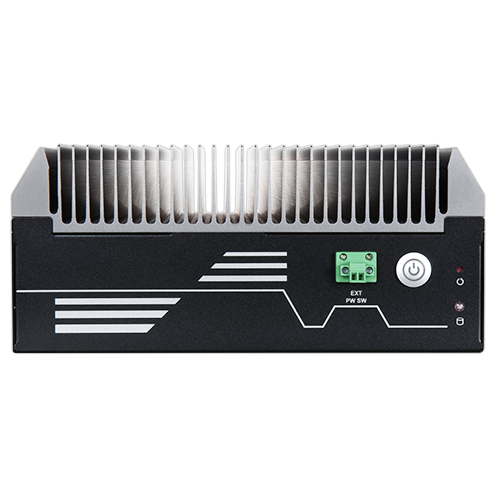

| Other | Power Button | |||||
| LED | Power, Storage | |||||
| Antenna | 2 x SMA Antenna holes for Wi-Fi | |||||
| ME/Environment | ||||||
|---|---|---|---|---|---|---|
| Dimension (WxDxH) | 253 x 201.2 x 111.8 mm (9.96″ x 7.92″ x 4.40″ ) | |||||
| Weight | 5.25 kg | |||||
| Power Supply | Terminal Block 12~36V | |||||
| Mounting | Wall Mount | |||||
| Vibration | 1G 10~500Hz with Wall mount (IEC/EN 60068-2-6) | |||||
| Shock | 50G 11m sec with Wall mount (IEC/EN 60068-2-27) | |||||
| Operating Temperature | -20 ~ 40 °C (-4.0 ~ 104.0 °F) | |||||
| Storage Temperature | -40 ~ 80 °C (-40.0 ~ 176.0 °F) | |||||
| Cooling | Fanless | |||||
| OS | Windows 10 IoT Enterprise, Windows 11 IoT Enterprise | |||||
| Portwell Special Feature | PET | |||||
